Project Overview

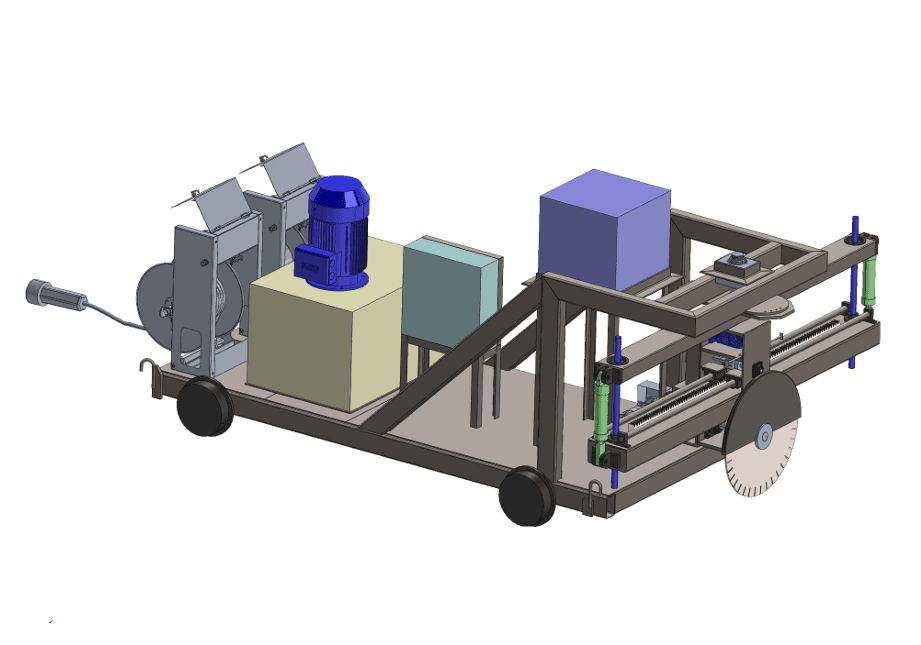

The client approached us with the task of reverse engineering a concrete block cutter into a 2D draft and a fully functional 3D model.. The concrete block cutter is a critical machine used for cutting and shaping concrete blocks with precision. Along with recreating the existing design, we implemented several modifications to enhance functionality, improve efficiency, and ensure smoother operations.

Challenges & Requirements

Reverse engineering an industrial concrete block cutter required a deep understanding of mechanical components, cutting dynamics, and power transmission efficiency. The goal was to enhance the system’s precision, flexibility, and durability while ensuring minimal energy loss during operation.

• Converting the existing machine design into an accurate 2D draft and 3D model for replication and modifications.

• Enhancing cutting functionality by enabling angular cutting at 45 degrees, in addition to the mono-directional operation.

• Optimizing the power system by transitioning from purely electric to an electric-hydraulic system.

• Improving motor efficiency by shifting from a belt-drive system to a direct-drive system for lossless operation.

• Introducing a water cooling system to regulate blade and wheel temperatures during cutting, improving durability.

• Estimated project duration: 12 months.




Our Approach

To ensure a seamless transition from the existing system to an optimized, high-performance machine, our team followed a structured design and validation process, integrating advanced engineering solutions.

1. Reverse Engineering & Drafting: Our experts analyzed the existing cutter’s structure and created a precise 2D draft, followed by a fully functional 3D model.

2. Angular Cutting Mechanism: We modified the cutting system to support 45-degree angular cuts, enhancing versatility in block shaping.

3. Electric-Hydraulic System Integration: The entire system was re-engineered from a purely electric operation to an electric-hydraulic system, ensuring greater power efficiency and control.

4. Direct-Drive Motor Implementation: We replaced the belt-drive motor system with a direct-drive configuration, eliminating energy loss and improving operational smoothness.

5. Water Cooling System Design: A dedicated water tank was introduced to cool blades and wheels during the cutting process, preventing overheating and increasing longevity.




Outcome & Impact

By integrating cutting-edge engineering modifications and efficiency-driven improvements, we significantly enhanced the concrete block cutter’s performance, precision, and reliability.

• Successfully developed an accurate and optimized 2D and 3D model of the concrete block cutter.

• Enabled multi-directional cutting with 45-degree angular cutting capability for increased versatility.

• Transitioned the machine to an electric-hydraulic system, improving power efficiency and operational control.

• Eliminated energy loss and improved cutting precision with a direct-drive motor system.

• Increased blade and wheel durability by incorporating a water cooling system, preventing overheating during operation.



Conclusion

Through strategic reverse engineering, functional modifications, and efficiency-driven enhancements, we successfully transformed the concrete block cutter into a more powerful, precise, and adaptable machine for the client. This case study highlights our expertise in industrial machinery optimization, ensuring better performance, durability, and efficiency.
